Itsy-Bits: Fabrication and Recognition of 3D-Printed Tangibles with Small Footprints on Capacitive Touchscreens

Abstract

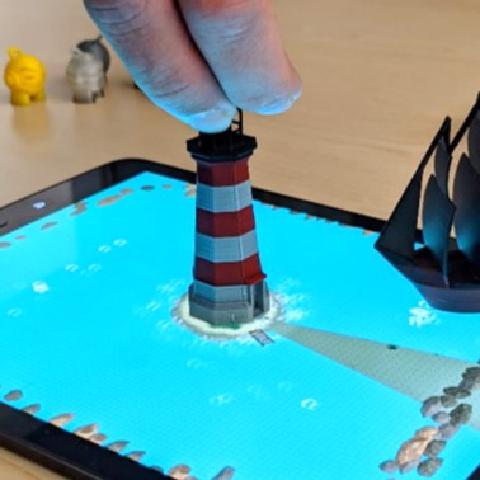

Tangibles on capacitive touchscreens are a promising approach to overcome the limited expressiveness of touch input. While research has suggested many approaches to detect tangibles, the corresponding tangibles are either costly or have a considerable minimal size. This makes them bulky and unattractive for many applications. At the same time, they obscure valuable display space for interaction. To address these shortcomings, we contribute Itsy-Bits: a fabrication pipeline for 3D printing and recognition of tangibles on capacitive touchscreens with a footprint as small as a fingertip. Each Itsy-Bit consists of an enclosing 3D object and a unique conductive 2D shape on its bottom. Using only raw data of commodity capacitive touchscreens, Itsy-Bits reliably identifies and locates a variety of shapes in different sizes and estimates their orientation. Through example applications and a technical evaluation, we demonstrate the feasibility and applicability of Itsy-Bits for tangibles with small footprints.
